Wide-Area Perception Versus a Zoom Camera

The Perception Platform captures and delivers what operators need better than video or zoom cameras. Three key design differences let Sapient deliver the future of ISR.

See the Difference, Seize the Advantage

  1. Snapshot, not scanningCapture the whole scene at once — cover more ground in fewer passes.See It
  2. Wide and detailed at onceFull field of view at high resolution — not a narrow zoom.Capture It
  3. Findings, not videoEmit only detections — a near-silent RF footprint, not a continuous stream.Save It

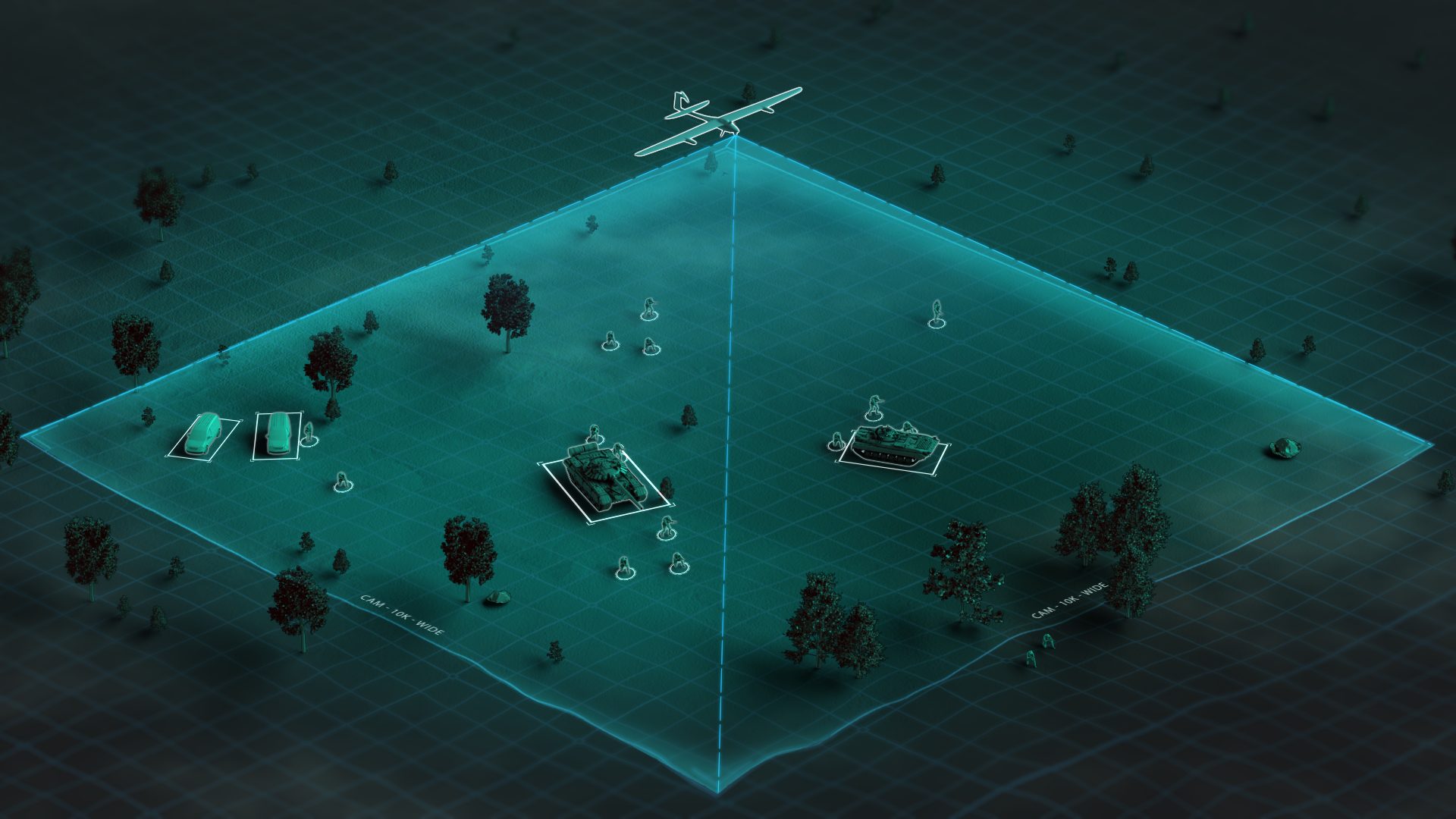

Isometric view of a fixed-wing UAV over a lit 10K sensor footprint, with cars, a tank, an armored vehicle and dismounts each captured and boxed inside a single wide frame.
One 10K frame covers the entire tactical field of view — every vehicle and dismount captured at detection resolution in a single snapshot.

01 Concept — snapshot, not scanning

Capture the Whole Scene at Once, Not One Strip at a Time

A zoom camera builds the picture by scanning — panning and zooming, or flying a dense search pattern — so coverage accumulates over time, and the aircraft loiters over anything worth a second look. Every extra minute over the objective is exposure.

A 10K sensor captures the entire tactical field of view in a single frame — a snapshot, at detection resolution, every frame. The aircraft covers a wider swath in fewer passes, at transit speed, and confirmation happens onboard rather than by circling back.

  • Up to 48× larger area per framethan a 1080p zoom block at the same detection resolution.
  • No zoom-switchingfull context and full detail exist in the same frame, so nothing is missed while zoomed in.
  • Confirmation onboarddetections are classified and tracked at the edge — no revisit passes for identification.

See the sensors: ROOK and ECHO →

Try it out · See everything

Area-coverage simulator

Pick what you need to identify, then set flying height, ground speed and flight time. Both sensors fly the same strip at the same detection resolution.

Object to identify

px/m

Both sensors fly the same straight strip-mapping pass with a 10 % side overlap — the most generous case for the zoom sensor, which in practice has to search wide and zoom in to confirm.

Sapient · per flight hour —

—

Zoom sensor · per flight hour —

—

Area advantage —

—

How this is calculated

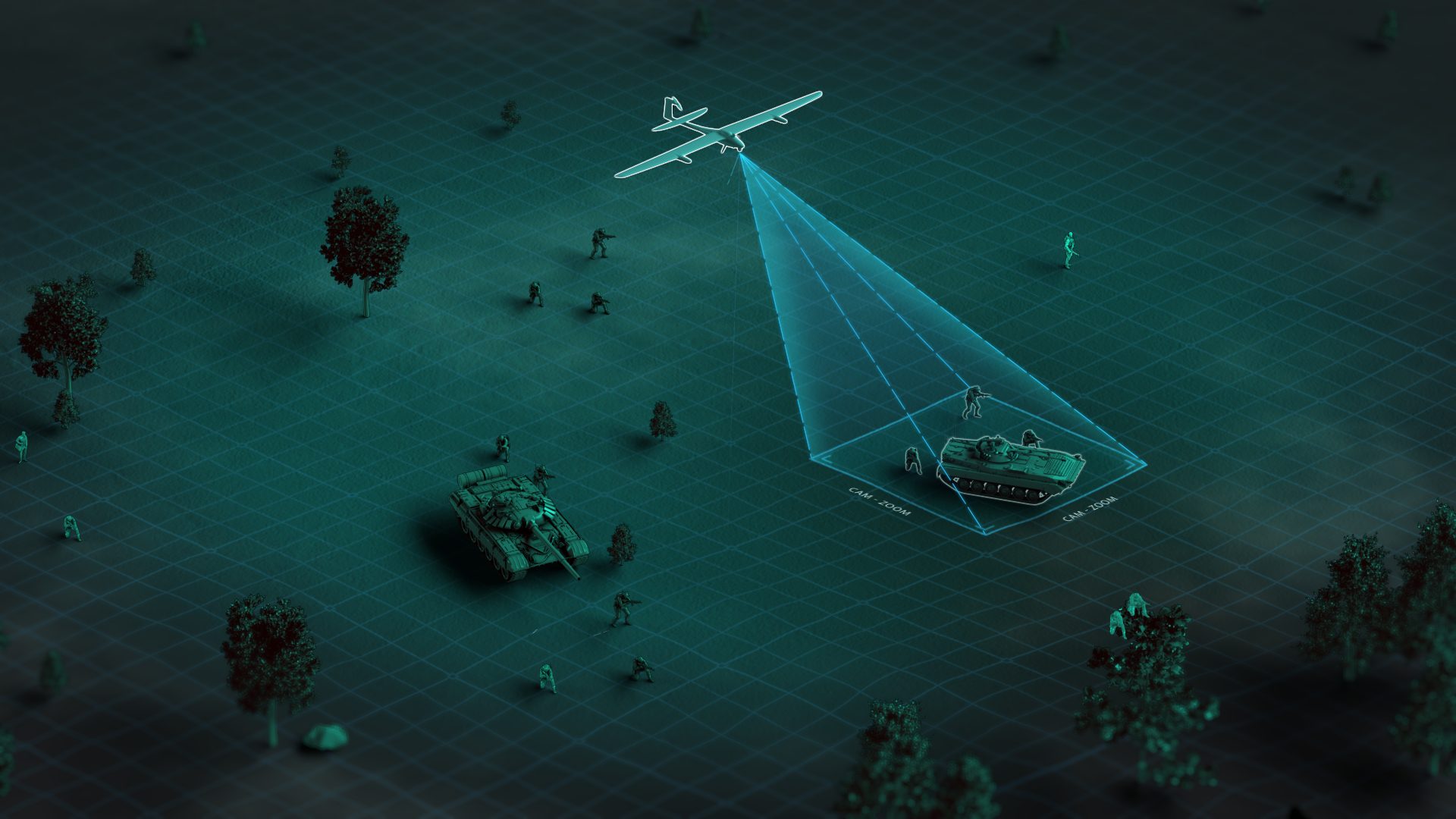

Isometric view of a UAV projecting a narrow zoom camera cone onto a single armored vehicle for fine detail, while a second vehicle sits outside the zoom window.
A steerable zoom window resolves fine detail on one target — while the 10K sensor holds the rest of the scene at the same time.

02 Concept — wide and detailed at once

A Zoom Trades Width for Detail. A 10K Sensor Keeps Both.

A zoom camera forces a choice. Zoom in for detail and you lose the surrounding scene; zoom out for context and the target shrinks to a few pixels. Field of view and resolution trade against each other, so you only ever have one at a time.

A wide-area 10K sensor holds a wide field of view and high resolution in the same frame — the whole scene, with every part of it at detection resolution. Nothing is lost while zoomed in, and there is no zooming out to keep up. And because the wide field of view keeps the target in frame as the platform moves, the aircraft can fly higher without a precision gimbal.

  • Wide field of view and high resolutionthe whole scene at detection resolution, not a narrow window. Size the optic to your altitude with the Lens Calculator.
  • No zoom trade-offcontext and detail exist in the same frame — nothing is missed while zoomed in.
  • Altitude without a precision gimbalthe wide field of view tolerates platform motion, so flying higher needs damping, not precision pointing. The platform is specified across the 50–25,000 m AGL envelope covered by the altitude figure on the Applications page.

See the optics options on ROOK and ECHO →

Try it out · Miss nothing

Target-in-frame simulator

Pick a target and altitude. See how much ground each sensor holds in one frame, and where a zoom camera has to point a narrow beam that a wide sensor never needs.

px/m
Must zoom · precision gimbal required
No zoom · wide field · motion tolerated
Zoom camera · sees across —

at 30× optical zoom

Sapient · sees across —

wide field, one frame

Frame size on the ground —

more ground area per frame, at the same detection resolution

How this is calculated

03 Concept — findings, not video

The RF Footprint Scales With Findings, Not Flight Time

A video sensor streams continuously — around 6 Mbps for the whole flight. Every minute airborne is a minute of emission: easy to detect, easy to direction-find, and dependent on a link that contested environments deny first.

Our platform processes everything onboard and initially transmits findings as metadata only — position, class, confidence. The emission profile is a near-silent baseline punctuated by brief bursts, one per finding. Imagery of a specific detection follows on request, not by default.

  • Findings as metadata firstkilobyte-scale bursts per detection, not a continuous megabit stream.
  • Emission scales with detectionsa quiet area produces a quiet aircraft — flight time no longer costs signature.
  • Degrades gracefullylow bandwidth demand makes the link robust to interference; findings are held onboard if the link drops.

See how IGNITE:AI delivers findings →  ·  See how FORGE processes onboard →

Try it out · Protect what matters

RF footprint simulator

Set the mission length, the number of confirmed findings and the video bitrate to compare against.

Video downlink · total —

continuous for the full flight

Sapient findings · total —

—

Reduction in transmitted data —

emission scales with findings, not flight time

How this is calculated

Illustrative model. Assumes ≈1.7 KB per finding (position, class, confidence metadata plus a thumbnail crop). Raw imagery never streams by default.

Test the Claims Against Your Mission

Bring a platform and a mission profile — we will walk the numbers with you.

Request a briefing See the hardware
